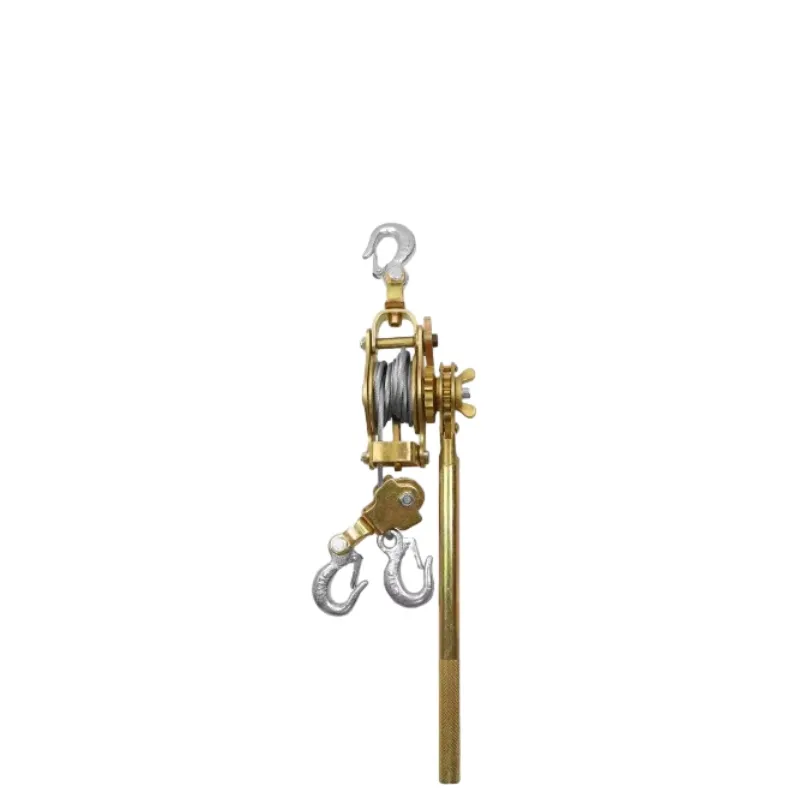

 Ratchet Cable Puller/ Cable Tightener

The ratchet cable Puller is a commonly used tool in the field of electrical engineering, particularly suitable for tightening steel stranded wires and small-section conductors during the construction of transmission lines. The ratchet cable puller is suitable for tightening operations of various specifications and materials of conductors, demonstrating strong versatility and adaptability. The anti-reverse design of the ratchet pawl ensures the continuity and stability of the tightening process, thereby improving work efficiency. During use, the ratchet cable puller can effectively protect the conductor from damage while enhancing safety during cargo transportation and lifting operations. The ratchet cable puller is widely used in related engineering fields due to its specific structure and functions.



PDF DOWNLOAD
Details
Tags

Working Principle





  • The working principle of the ratchet tensioner is based on the anti-reverse action of the pawl.
  • During use, the steel wire rope or galvanized iron wire on the tensioner is first loosened and fixed on the cross-arm.
  • Then, a wire clamp is used to grip the conductor. Next, by turning a special wrench, the pawl gradually winds the steel wire rope or galvanized iron wire around the ratchet drum, thereby tightening the conductor.
  • After tightening, the conductor is fixed on the insulator, and then the pawl and wire clamp are released to complete the tightening




Feature



  • 1. Thread coil wire rope
  • Anti-twist type thickened steel wire rope, without loose rope and burr. 360°crimping does not fall off, solid and durable.
  • 2. Anti-skid handle
  • Anti-slip thread design, use the fitting handle for a long time, 360 rotation control clamp can rotate backwards, and can be loosened in both directions.






Specification



Model

Pulling force(KN)

Weight(kg)

JXRS-05

5

2.6

JXRS-10

10

3.2

JXRS-15

15

4.0

JXRS-20

20

4.3

JXRS-30

30

6.2

Material

High-strength alloy steel

Function

Fixation/traction/lifting

accessory products

Used in conjunction with cable clamps
