Cable Drum Jacks

Cable drum jacks are mechanical devices used for lifting and transporting heavy cable drums in various industrial settings. They are designed to facilitate the handling of these large and cumbersome drums, making it easier for workers to move and install cables more efficiently. Cable drum jacks typically have a sturdy construction and can be operated manually or with the help of power tools. These tools play a crucial role in the cable installation process and help ensure the smooth and safe transport of cables.



PDF DOWNLOAD
Details
Tags

Describe





  • Hydraulic drum Jacks are manufactured with the ability of lift cable drums that weigh 5 Tons, 10 Tons and 15 Tons respectively.
  • The Jacks are placed on a heavy duty ground plate and solid trusts fitted with wheels for easy transportation and complete with spindle and fixing clamps.
  • The Hydraulic cable Jack can be provided also in a 3 model.




Specification



Capacity/Pair

Drum Max

Weight/Pair

5 ton

≤1500m

108KgX2

10 ton

≤1800m

154KgX2

15 ton

≤2000m

225KgX2

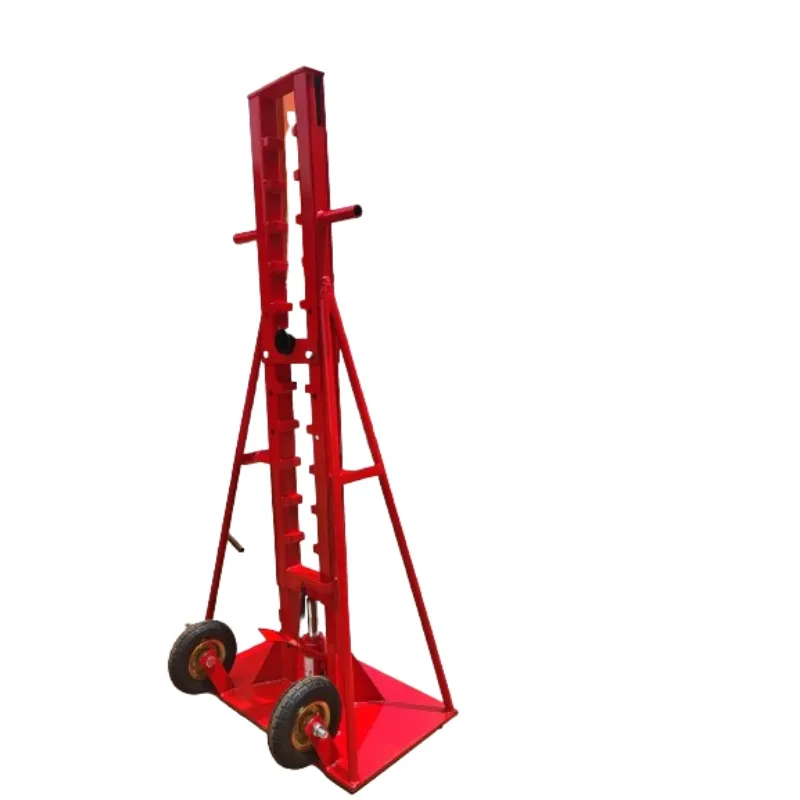

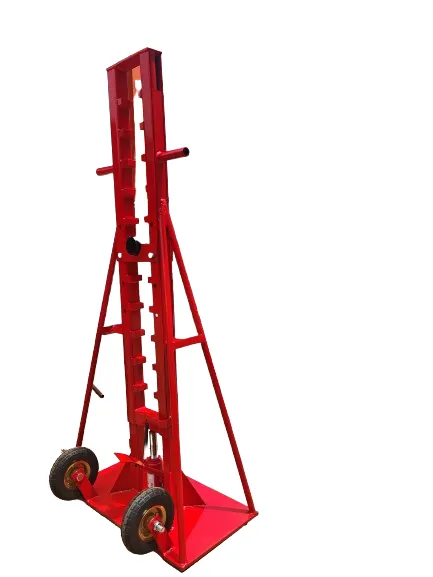

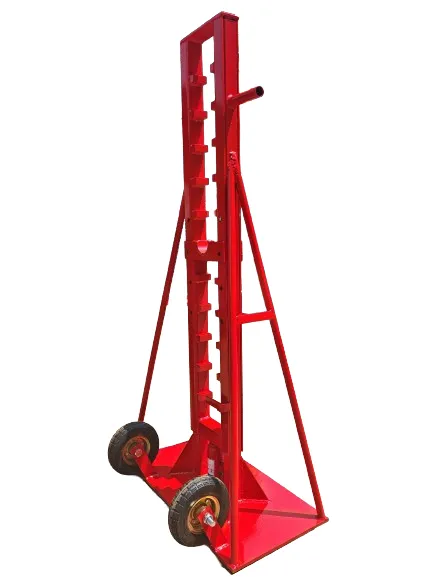

Product Display







Notes





  • 1. Before using the pay-off stand, the weight of the cable reel should be confirmed to prevent overloading.
  • 2. The cable reel must be placed in the middle of the pay-off stand to prevent the axle lever from bending due to uneven force.
  • 3. The pay-off stand must be used on a stable ground to avoid tipping over.
  • 4. When lifting the cable reel, both supports must be lifted simultaneously to ensure that the axle lever remains horizontal, preventing the cable reel from tilting to one side due to unilateral lifting. Similarly, when rotating the cable reel for paying off, ensure that the axle lever remains horizontal to prevent the cable reel from moving to one side and tipping over.
  • 5. Before paying off the cable, the two pay-off supports need to be anchored after the cable reel is lifted into position. Otherwise, the supports may move or even tip over when the cable reel rotates.
