Telescopic Hot Stick

In the electric power distribution industry, a hot stick is an insulated pole, usually made of fiberglass, used by electric utility workers when engaged on live-line working on energized high-voltage electric power lines, to protect them from electric shock. Depending on the tool attached to the end of the hot stick, open and close switches, replace fuses, lay insulating sleeves on wires, and perform various other tasks while not exposing the crew to a large risk of electric shock



PDF DOWNLOAD
Details
Tags

Specification



Model

Extended

length(m)

Retracted length(m)

Base diameter(mm)

Sections

Weight

(kg)

RHS-300

3

1.27

37

3

1.92

RHS-400

4

1.65

37

3

2.24

RHS-450

4.5

1.76

37

3

2.32

RHS-500

5

1.95

37

3

2.4

RHS-600

6

2.25

37

3

2.72

RHS-400-4

4

1.35

43.5

4

3.12

RHS-500-4

5

1.65

43.5

4

3.26

RHS-600-4

6

1.85

43.5

4

3.5

RHS-700

7

2.1

43.5

4

3.74

RHS-750

7.5

2.2

43.5

4

4

RHS-500-5

5

1.45

50

5

3.2

RHS-600-5

6

1.65

50

5

3.65

RHS-700-5

7

1.85

50

5

3.75

RHS-750-5

7.5

1.95

50

5

3.95

RHS-800

8

2.07

50

5

4.1

RHS-900

9

2.2

50

5

4.3

RHS-1000

10

2.45

50

5

4.4




Product Display






Features



  • 1. Insulation: Hot sticks are usually required to have indicators such as protection, insulation, and pressure tolerance to ensure the safety of personnel during operation.

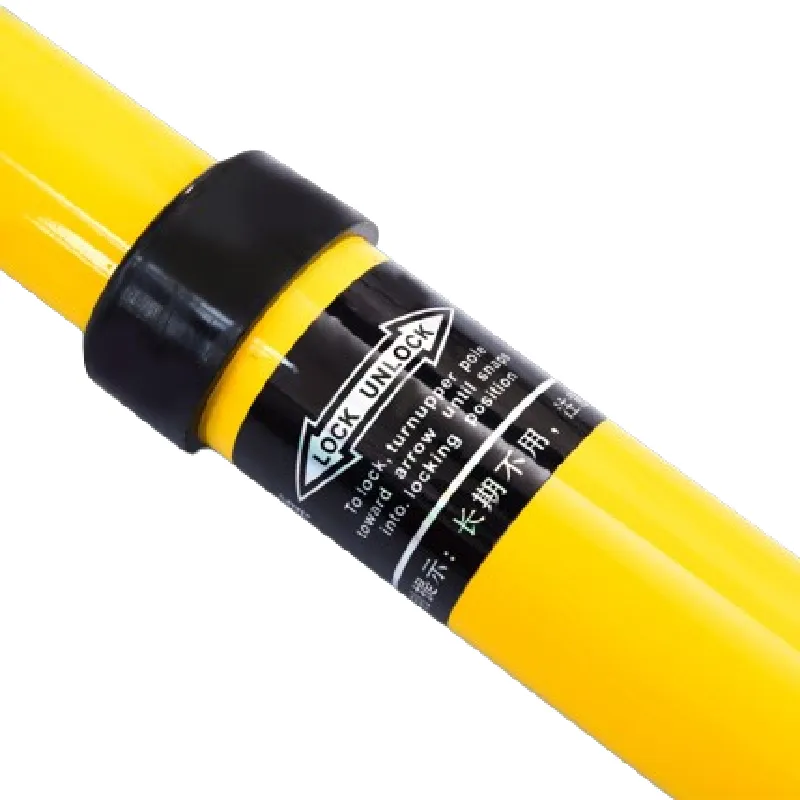

  • 2. Retractable design: Some hot sticks adopt a retractable design, which can be retracted and positioned to any length according to the use space, making it easy to carry and use.
  • 3. Interface design: Some hot sticks adopt an interface design, with spiral interfaces at the sections, which can be bagged in sections for easy carrying.
  • 4. Quality and reliability: As a professional rescue equipment, the quality of Hot Stick is one of its key features. Its sophisticated design and manufacturing ensure that it can work stably and reliably in complex and dangerous environments.
