Shotgun Hot Stick

Fixed length shotgun stick with internal operating rod, is a special tool for installation and operation of live work construction appliances, also for non-live work.



PDF DOWNLOAD
Details
Tags

Product Description



It is essential for insulating equipment to protect the conductor when working with high voltage lines and conductors, where a risk of electric shock, arcing or explosion is expected.  It is made of high strength insulated components, with external operating button, so that the operation is less effort. With internal pull type small bar to prevent knock. The movable operation hook is easy to open and close, the operation positioning is firm, and never decouple. There are two types of shotgun Operation Stick, one is the Single section shotgun stick, another is the Segmented shotgun stick.




Product Parameters



Single section shotgun hot stick:

Product number

Length(m)

Weight(kg)

Moisture proof bag model

DN-140

1.4

2.4

FC-145

DN-200

2

3.1

FC-205

DN-260

2.6

3.9

FC-265

DN-320

3.2

4.8

FC-325

DN-380

3.8

5.7

FC-385



Segmented shotgun hot stick:

Product number

Length(m)

Folding length(m)

Weight(kg)

Moisture proof bag model

FN-200

2

1.05

2.5

FC-110

FN-260

2.6

1.35

3.3

FC-140

FN-320

3.2

1.60

3.7

FC-165

FN-380

3.8

1.90

4.6

FC-195




Features



Shotgun hot Sticks are manufactured from the highest electrical grade insulated fiberglass. Some of the features include:

  • Easy maintenance handle - all pliers require no field stripping to clean.
  • All insulated parts, including the operating rod, are outside the main post, easily accessible for wiping.
  • The superior head design is molded from non-conductive polycarbonate, durable, impact resistant and unaffected by extreme temperatures.

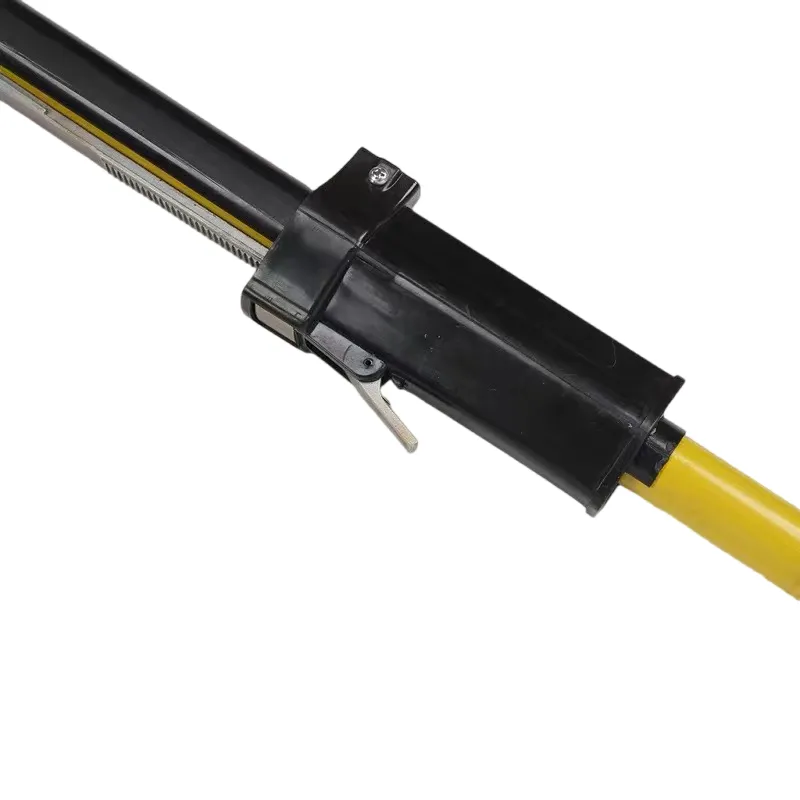

  • This hot stick has a sliding lever mechanism. This mechanism allows the lineman to open and close the hot stick, which allows the lineman to attach a hot stick to a disconnect ring/shotgun.
  • It is designed to install hot lines and grounding clamps.
