Hydraulic Crimping Pliers EZ-300/400

Hydraulic Crimping Pliers EZ-300/400 is an electric tool that combines portability, high efficiency, and multi functionality. This type of hydraulic pliers is commonly used for crimping wires, cables, and other metal conductors, especially in situations where frequent movement or work at different locations is required.



PDF DOWNLOAD
Details
Tags

Feature





  • Portable Design: Easy to carry and operate, allowing flexible use in various environments.
  • Rechargeable Power Supply: Equipped with high-performance lithium batteries that can provide long-lasting operation without the need for frequent battery changes or access to power outlets.
  • Hydraulic Crimping Function: Utilizes hydraulic principles to deliver powerful crimping force, capable of easily completing various crimping tasks.
  • 330-Degree Rotating Head: Increases operational flexibility, adapting to crimping needs at different angles and positions.
  • Dual-Speed, Dual-Action Hydraulic Mechanism: Offers different crimping speeds and forces to meet the requirements of different materials and specifications.
  • Automatic Return and Manual Oil Return Functions: Enhance work efficiency while adding convenience to operation.
  • Safety Valve Device: Ensures that excessive pressure during crimping does not damage the tool or workpiece.
  • Automatic Power-Off Function: When the tool is not in use for an extended period, the system automatically shuts off to save battery life and prevent accidental activation.



Hydraulic Crimping Pliers EZ-300/400 have a wide range of applications in the electrical, communications, construction, and other industries that require crimping work. They not only improve work efficiency but also reduce operational difficulty and costs.



Model

EZ-300

EZ-400

Crimping force

60KN

120KN

Crimping Range

16-300mm²

16-400mm²

Stroke

17mm

42mm

Crimping/Charge

About 320 times (copper wire 150mm²)

About 120 times (copper wire 150mm²)

Crimping Cycle

3-6 seconds

10-20 seconds

Voltage

18V

18V

Capacity

3.0Ah

3.0Ah

Charging Time

2 Hours

2 Hours

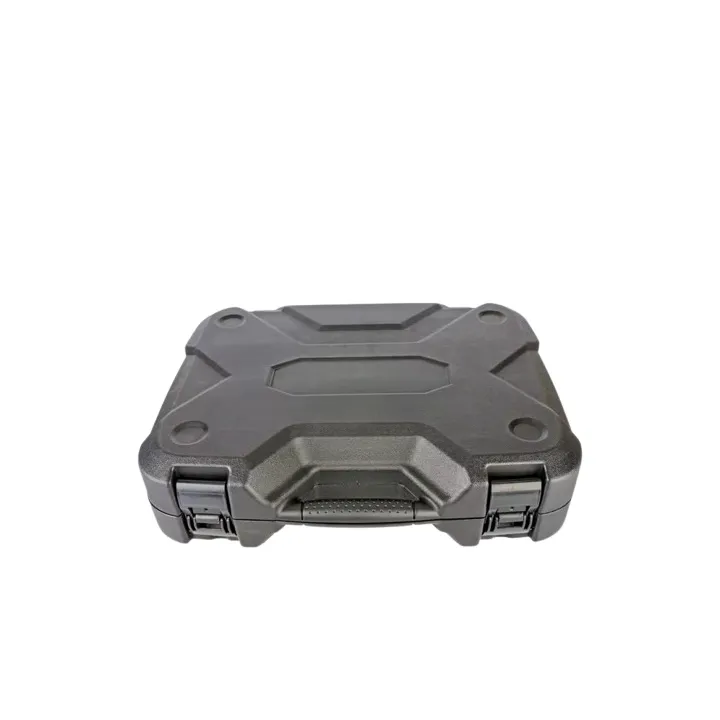

Package

Plastic Box

Plastic Box

Accessories

Crimping Die: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²Two batteries and one charger

Crimping Die: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²Two batteries and one charger
