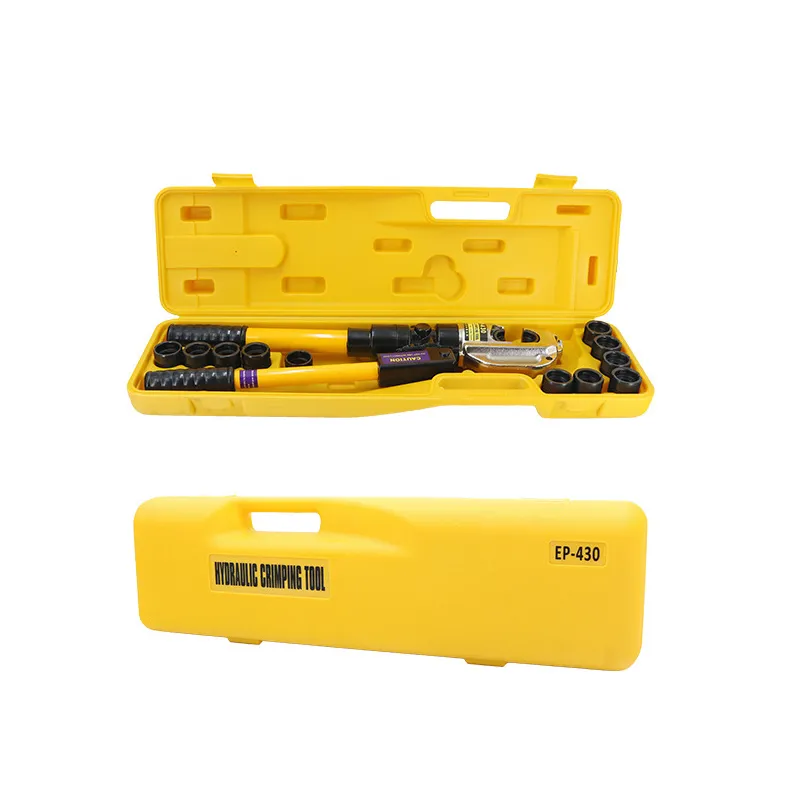

Hydraulic Crimping Pliers EP410/430/510

The hydraulic crimping tool, also known as the hydraulic crimper, is a specialized hydraulic tool primarily used in electrical engineering for crimping cables and wire terminals. It boasts strong clamping force, fast speed, high stability, and good safety, making it widely used in various fields. There are various types of hydraulic crimping tools, including detachable/integral cable crimpers, mechanical cable crimping tools, steel-core cable crimpers, manual hydraulic crimpers, and electric hydraulic crimpers. Users can select the appropriate type based on the usage scenario and operation method.



PDF DOWNLOAD
Details
Tags

Feature



  • The hydraulic crimping tool, also known as the hydraulic crimper, is a specialized hydraulic tool primarily used in electrical engineering for crimping cables and wire terminals.
  • It boasts strong clamping force, fast speed, high stability, and good safety, making it widely used in various fields.
  • There are various types of hydraulic crimping tools, including detachable/integral cable crimpers, mechanical cable crimping tools, steel-core cable crimpers, manual hydraulic crimpers, and electric hydraulic crimpers.
  • Users can select the appropriate type based on the usage scenario and operation method.




Specification



MODEL

EP-410

EP-430

EP-510

PRESSURE

12T

12T

13T

MAX PRESSURE RANGE

35-300mm2

50-400mm2

50-400mm2

OPENING DISTANCE

 30mm

 32mm

 38mm

CRIMPING TYPE

Hexagon confining pressure

Hexagon confining pressure

Hexagon confining pressure

PRODUCT SIZE

613×160×120mm

620×165×102mm

635×170×105mm

USING OIL

32 extra lubricating oil

32 extra lubricating oil

32 extra lubricating oil

OIL RESERVES

145CC

145CC

145CC

PACKAGE

Plastic box

Plastic box

Plastic box

PACKING SIZE

770×230×130mm

770×230×130mm

770×230×130mm

NW/GW

6.8Kg/10.4Kg

7Kg/11Kg

8Kg/12Kg

STANDARD DIES

35/50/70/95/120/150/185/240/300

50/70/95/120/150/185/240/300/400

50/70/95/120/150/185/240/300/400

OPTIONAL DIES

4/6/8/10/16/25/35



  • For power cable conductors, oil-pressurized copper and aluminum wire connection terminals and connecting tubes:
  • Utilizes hexagonal molds for tight crimping, ensuring excellent conductivity, resistance to falling off, and efficient heat dissipation. Features two-stage high-speed, low-pressure operation with rapid oil inflow, easy operation, and convenient oil return.
  • Employs a rotary crimping method for quick oil return.
  • When the pressure reaches 700kg/cm², a safety protection device is designed to emit a "click" sound to warn the operator and stop the operation.
  • The crimping head can rotate 180 degrees.
  • Fiberglass insulated operating rod that can withstand a voltage of 20Kv for 5 minutes continuously.
  • It boasts strong clamping force, fast speed, high stability, and good safety, making it widely used in various fields.
