Feature
- 1. Sharp blade
- forged with spring steel material, resistant to rust, corrosion, and long service life
- 2. High hardness gears
- high-frequency quenching process, stable use, free adjustment, and high work efficiency
- 3. Electroplated handle
- made of high-density iron alloy, made of hard and not easily bent material
- 4. Free telescopic handle multi-purpose use, more labor-saving, efficient, and convenient to carry
- 5. Insulated handle
- non-conductive, safer operation
Spesifikasjon
|
Item No |
Size (mm) |
Vekt (kg) |
applikasjon |
Handle |
|
J40 |
346*120*38 |
1.15 |
Cutting copper or aluminum armored cable below dia 30mm;300mm2 |
/ |
|
J52 |
397(568)*165*54 |
3.1 |
Cutting copper or aluminum armored cable below dia 50mm |
Retractable |
|
J75 |
416(587)*200*55 |
3.5 |
Cutting copper or aluminum armored cable below dia 75mm |
Retractable |
|
J95 |
446(620)*248*55 |
5.7 |
Cutting copper or aluminum armored cable below dia 95mm,3*185mm2 |
Retractable |
|
J100 |
482(655)*270*59 |
6.5 |
Cutting copper or aluminum armored cable below dia 100mm;3*300mm2 |
Retractable |
|
J130 |
524(693)*328*59 |
8.7 |
Cutting copper or aluminum armored cable below dia 130mm; |
Retractable |
|
It is strictly forbidden to cut steel strand, steel core, aluminum strand, and all kinds of steel cables |
||||

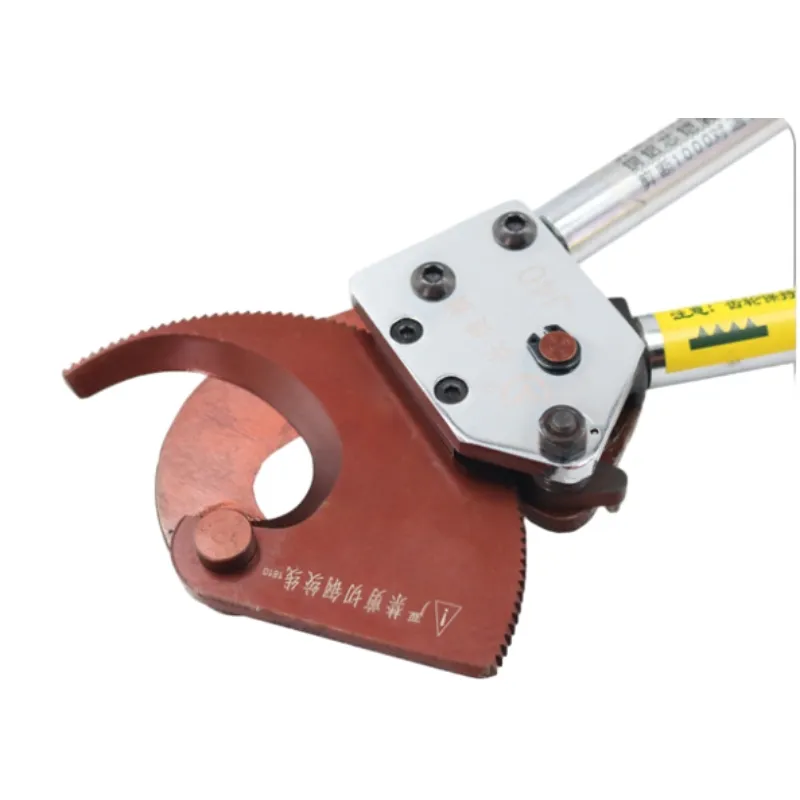

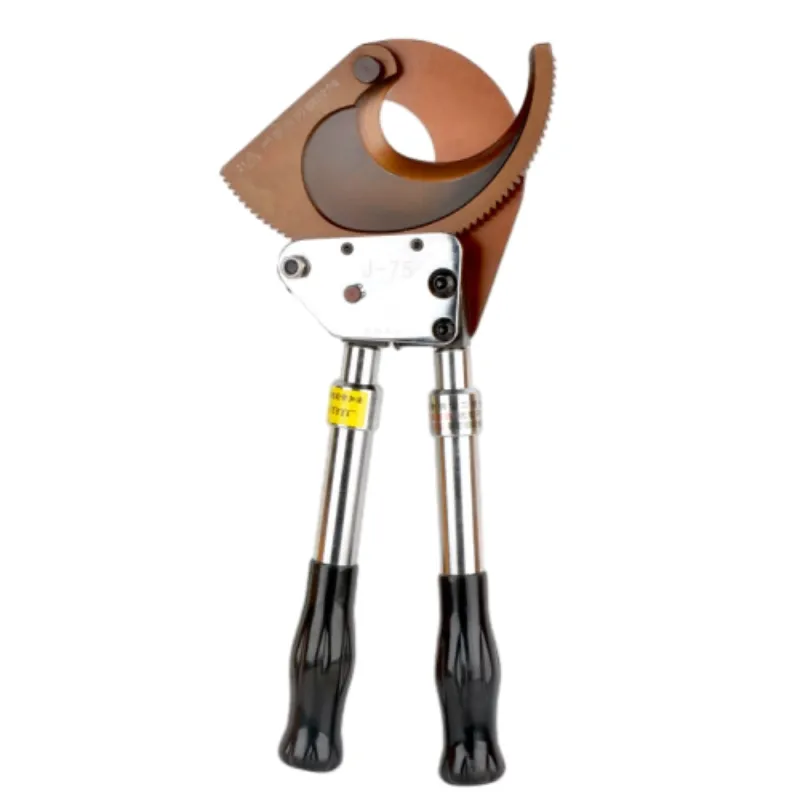

Produktvisning
Notes
- 1. After using the cable cutter, if a large gap appears between the blades, loosen the fastening screws, adjust the blades until they fit perfectly, and then tighten the screws again.
- 2. Avoid continuous rapid feed motion during shearing to prevent complete engagement between the ratchet wheels, which could lead to tooth stripping. Continue working only after hearing the clear "click" sound.
- 3. Do not discard the cable cutter casually with excessive force during use or operation.
